A new feature coming to WLS is the ability to monitor commands executed at the command prompt. Using methods similar to Volatility’s cmdhistory.py and Extracting Windows Cmd Line Details from Physical Memory (pdf), commands and their associated cmd.exe PID can now be logged in near real-time.

Update: Here’s a video showing the results:

On WIndows XP, each cmd.exe process has it’s history stored in csrss.exe, which you can see using Process Explorer or Process Hacker:

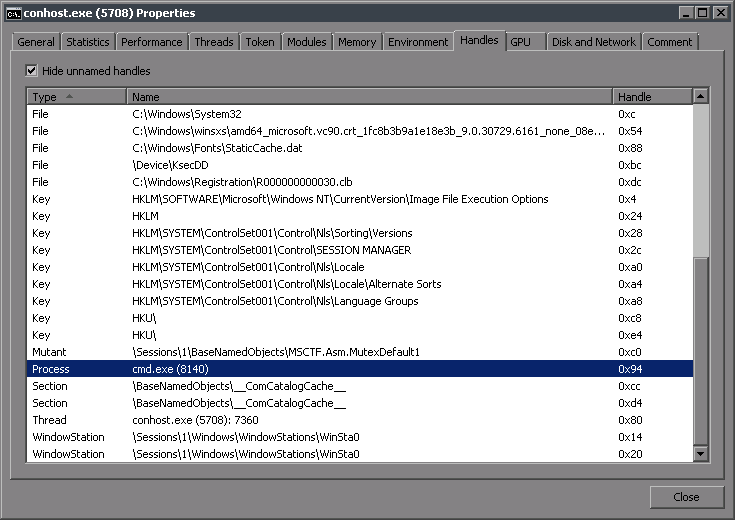

On Windows Vista+, each cmd.exe process has it’s own conhost.exe:

The only correlation (that I could find) between the cmd.exe process and the process that holds it’s command history, is that csrss.exe / conhost.exe has an open handle to the associated cmd.exe process.

Finding the handle

NtQuerySystemInformation is used to obtain a list of handle entries which contain: OwnerPID, ObjectType, HandleFlags, ObjectPointer, and AccessMask. Each entry is checked for an ObjectType of Process, an OwnerPID belonging to csrss.exe / conhost.exe and a HandleValue that references a cmd.exe process. The HandleValue will be used to correlate this entry with a command history structure.

Finding the history structure

Scanning for the command history structure in memory involves searching for a known value, typically the maximum command history, then checking if the data surrounding it matches the structure definition. Invariably there will be false positives which can mostly be weeded out by value checking the first four values in the structure, and that the pointer in the structure points to it’s start address. This structure also contains the process handle value found in the handle entry above.

Address		Description
x86	x64
0x00	0x00	Command Count (0 – Max)
0x02	0x02	Last Added (0 – Max)
0x04	0x04	Last Displayed (0 – Max)
0x06	0x06	First Command (0 – Max)
0x08	0x08	Max History
0x0C	0x10	Virtual Address / Handle
0x10	0x18	Pointer to this structure @ 0x00
0x14	0x20	Pointer to this structure @ 0x00

Now there is a 1:1 relationship between a cmd.exe instance and the command history in memory. Aside from the obvious benefit of knowing the ProcessId, scanning memory for new structures is no longer needed once each relationship is known, eliminating the most resource intensive part of the monitoring process.

Example!

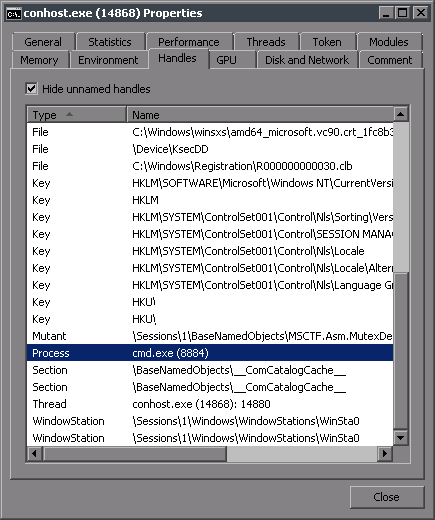

cmd.exe opened with a ProcessId of 8884 (0x22B4), conhost.exe 14868 (0x3A14) has it’s command history.

A handle entry scan returns an entry with an OwnerPID matching that of conhost.exe and an ObjectType of 0x07, which is a Process on Vista+. The cmd.exe PID is obtained by duplicating the handle in HandleValue and calling GetProcessId. Since OwnerPID equals 0x3A14 and the value returned from GetProcessId is 0x22B4, we have a match.

AccessMask: 0x1FFFFF

HandleFlags: 0x00

HandleValue: 0x94

ObjectPointer:&HFFFFFA8010AEB170

ObjectType: 0x07

OwnerPID: 0x3A14

A memory scan for the max history value (typically 0x32) finds the following structure, indicating 1 executed command, a virtual address of 0x94 which matches the HandleValue above, and two pointers that correctly identify the location in memory of the structure.

Address	Value	Description
0x00	0x01	CommandCount
0x01	0x00	CommandCount
0x02	0x00	LastAdded
0x03	0x00	LastAdded
0x04	0x00	LastDisplayed
0x05	0x00	LastDisplayed
0x06	0x00	FirstCommand
0x07	0x00	FirstCommand
0x08	0x32	MaxHistory
0x09	0x00	MaxHistory
0x0A	0xEF
0x0B	0xFF
0x0C	0xFC
0x0D	0xFC
0x0E	0xFC
0x0F	0xFF
0x10	0x94	VirtualAddress
0x11	0x00	VirtualAddress
0x12	0x00	VirtualAddress
0x13	0x00	VirtualAddress
0x14	0x00	VirtualAddress
0x15	0x00	VirtualAddress
0x16	0x00	VirtualAddress
0x17	0x00	VirtualAddress
0x18	0x78	StructurePointer1
0x19	0xE8	StructurePointer1
0x1A	0x16	StructurePointer1
0x1B	0x00	StructurePointer1
0x1C	0x00	StructurePointer1
0x1D	0x00	StructurePointer1
0x1E	0x00	StructurePointer1
0x1F	0x00	StructurePointer1
0x20	0x78	StructurePointer2
0x21	0xE8	StructurePointer2
0x22	0x16	StructurePointer2
0x23	0x00	StructurePointer2
0x24	0x00	StructurePointer2
0x25	0x00	StructurePointer2
0x26	0x00	StructurePointer2
0x27	0x00	StructurePointer2

The next section of the command history structure contains a list of pointers to simple structures containing the length of the command and the command itself in unicode.

0x28	&H70	Command1
0x29	&HDA	Command1
0x2A	&H16	Command1
0x2B	&H0	Command1
0x2C	&H0	Command1
0x2D	&H0	Command1
0x2E	&H0	Command1
0x2F	&H0	Command1

The structure found by following the pointer above correctly indicates a length of 14 and the unicode encoded command “echo hi”, which was the command executed.

Address	Value
0x00	0x0E	14
0x01	0X00
0x02	&H65	e
0x03	&H00
0x04	&H63	c
0x05	&H00
0x06	&H68	h
0x07	&H00
0x08	&H6F	o
0x09	&H00
0x0A	&H20
0x0B	&H00
0x0C	&H68	h
0x0D	&H00
0x0E	&H69	i
0x0F	&H00

The resulting log from WLS looks like this:

2013-10-27T12:28:43-05:00 [pc] WLS_CommandMonitor: LogType=”WLS”, Command=”echo hi”, ProcessId=”0x22b4″, Type=”Executed”

WLS tracks the LastAdded and LastDisplayed values, and logs them when a change occurs, noting the Type in the log entry. Here I entered some more commands, arrowed up through history, then appended a character to a previous entry and executed it.

2013-10-27T13:28:30-05:00 [pc] WLS_CommandMonitor: LogType=”WLS”, Command=”echo hi2″, ProcessId=”0x22b4″, Type=”Executed”

2013-10-27T13:28:32-05:00 [pc] WLS_CommandMonitor: LogType=”WLS”, Command=”echo hi3″, ProcessId=”0x22b4″, Type=”Executed”

2013-10-27T13:28:33-05:00 [pc] WLS_CommandMonitor: LogType=”WLS”, Command=”echo hi2″, ProcessId=”0x22b4″, Type=”Displayed”

2013-10-27T13:28:37-05:00 [pc] WLS_CommandMonitor: LogType=”WLS”, Command=”echo hi24″, ProcessId=”0x22b4″, Type=”Executed”

For more information on WLS, click “WLS Information” at the top, or here: WLS Information

If you’d like additional information about WLS, send me a note via the contact form. WLS is currently available to US entities, but does require a signed license agreement.
